RLB-C Ultrasonic Heat Measure Meter

- Adopting imported high quality transducer, ensure high precision and stability of flow

- No any mechanical motion, no abrasion, doesn’t be affected by bad water quality, low maintenance cost.

- Low starting flow rate

- It can be installed both vertically and horizontally. It is very convenient to be reading from different directions by rotatable meter

- Pulse, M wire and RS485 outlet wire can be remote and concentrated controlled

- Automatism of error diagnostics ensure safe operation

- Battery life more than 8 years

- Both of measuring heating and refrigeration

- Best options for temperature of water inflow and outflow, and easy to maintenance

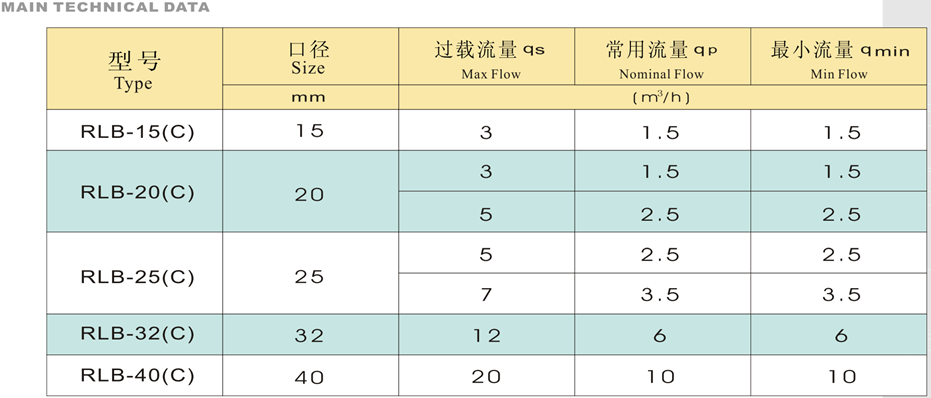

Size: DN15-DN40

Accuracy grade: two class or three class

pressure loss: <25kPa/qp

Maximum working pressure: 1.6 MPa

Consume hot (cold) amounts: From the beginning of 0.25K

Temperature range: 4-95℃

Temperature difference range: 3-70 ℃

Temperature resolution: 0.01 ℃

Environmental temperature: A class

Battery life: above 8 years

Installation: horizontal or vertical fixing

Hot (cold) carrier: water

Temperature sensor: PT1000 platinum

Monitor: 8-bit LCD

Place of origin:Guanddong,China

power: electricity
