LXC Ultrasonic Water Meter

Inquire Now Next Product

Ultrasonic water meter is a new electronic remote water meter. By detecting the time difference generated when the ultrasonic beam propagates downstream and countercurrent in the water, the flow rate of the water can be analyzed and the cumulative flow of water can be calculated. This product is mainly used in residential water metering.

Feature:

-It has no mechanical movable parts, and it is not affected by impurities in the water;

-Compared with the traditional mechanical water meter, the ultrasonic water meter car be measured wide range of measurement. And it can be measured when it has small traffic

-It can analyze possible leak problems by changing the flow rate;

-Unique waterproof design, protection grade meets IP68;

-Low-power design and the use of high-energy batteries, can work for 8 years or more;

-The communication interface is RS485 bus and using the Modbus protocol, it can easily achieve remote real-time monitoring on the LAN.

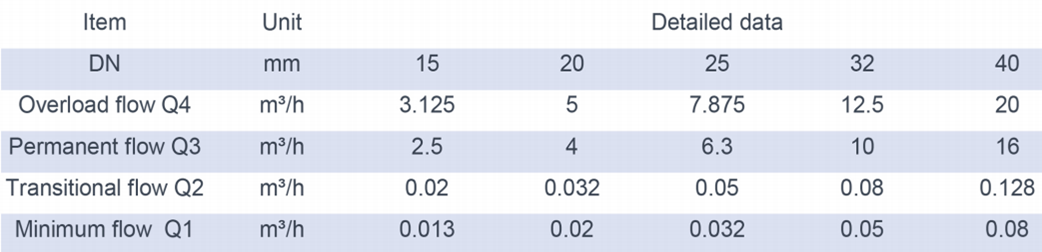

Size: DN15-DN40

Q3/Q1: R200

Accuracy class: Class B

Maximum indication: 99999.9m³

Temperature class: T50

Battery life: 8 years

Pressure loss: 0.064MPa

Pressure loss class: △p63
