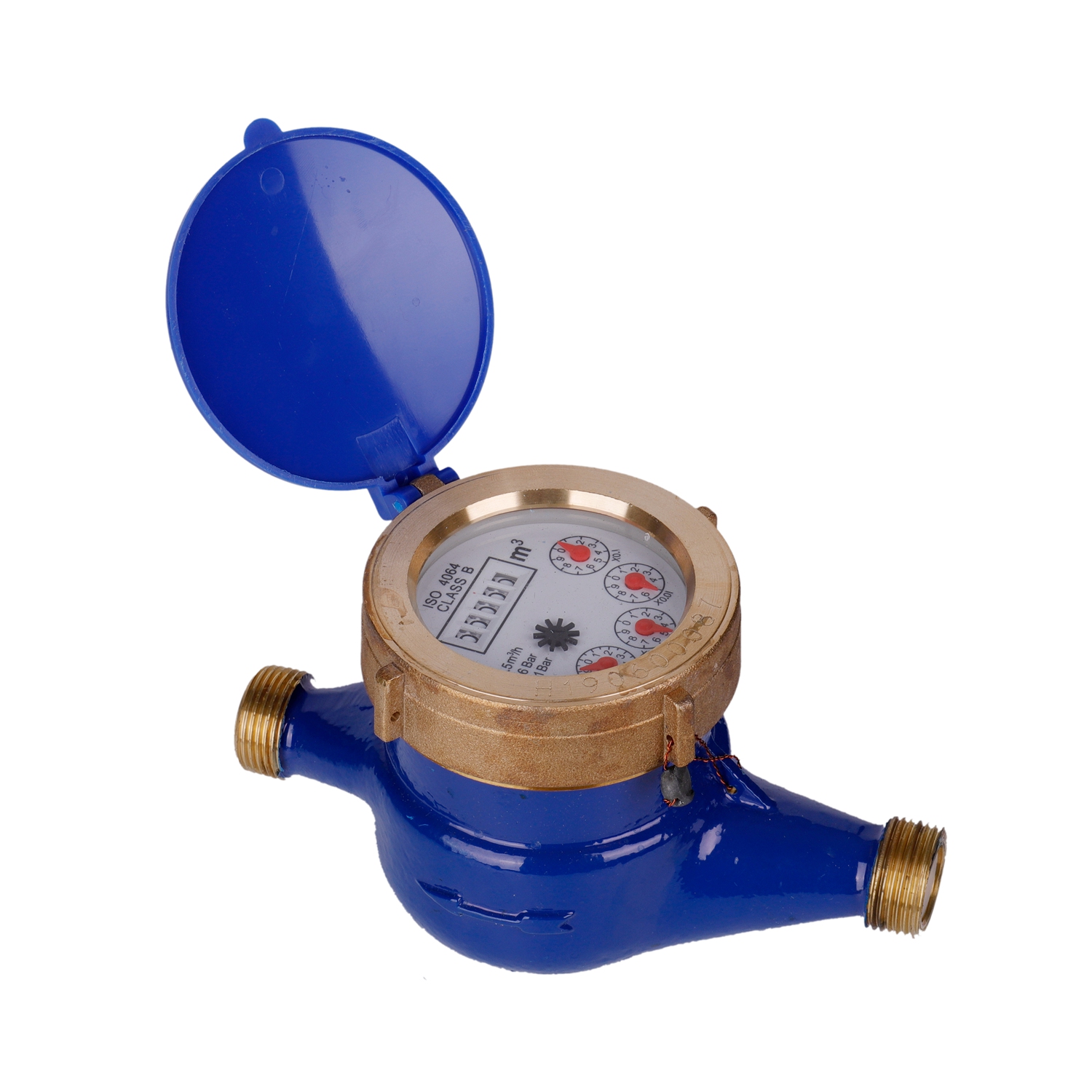

095-096 LXS-C Brass Rotary Vane Multi-jet Wet-dial Water Meter

-Pointer register or pointer& numeric register for option

-Installed in horizonal pipe which is suitable for household as branch meter and easy for installation

-Selected high quality materials for steady& reliable characteristic and good appearance

Note: Technical data conform to ISO4064

Hot water, brass body, iron body or stainless steel body, non-return water meter or liquid water meter for option

Maximum permissible error:

In the lower zone from Q1 inclusive up to but excluding Q2 is±5%.

In the upper zone from Q2 inclusive up to and including Q4 is±2%.

Working Condition:

Water temperature:0℃≤t≤ 30℃ (for cold water meter)

Water pressure: ≤1MPa

Size: DN15-DN50

Certification:ISO4064

Brand name:Yomtey

Material:brass

Medium: Water

Temperature:30℃

Pressure: ≤1MPa

Place of origin:Guanddong,China

Model:LXS-C
